JCL Precision Part Co.,Ltd.

Stainless Steel Deep Drawing Components

Welcome to the world of stainless steel deep drawn products. By deep drawing metal, we transform flat sheets of stainless steel into three-dimensional shapes. These shapes eventually become functional automotive, kitchenware, electronics, and medical instruments.



Get A Quote
JCL Brings You Premium Deep Drawing Solutions

JCL Brings You Premium Deep Drawing Solutions

We are leading the deep drawing industry with our team of skilled engineers who meet the highest industry standards.


inqurie

Key Features

High strength-to-weight ratio

Stainless steel is stronger than other metal drawing, such as aluminum or carbon steel. This makes steel components more capable of creating thin and intricate designs.


Excellent formability

Stainless steel is really good for sheet metal drawing because it is highly stretchable. Stainless steel's inherent ductility allows for minimal thinning or tearing.


Superior corrosion resistance

Stainless steel's chromium oxide layer protects it from rust and corrosion, even in harsh environments. So, fabricated steel doesn’t require additional coatings or treatments, which reduces maintenance costs.


Heat resistance

Some deep drawing steel grades can withstand high temperatures without losing strength or shape. This makes them suitable for cookware or automotive exhaust systems.


Aesthetic appeal

Stainless steel has a clean, polished look. Sometimes, this can be very useful in metal stamping. Otherwise, it works really well for jewelry. This look also allows steel to be left uncoated or finished in various ways. It also makes steel easy to clean.


Recyclability

Stainless steel is fully recyclable. Industries make great use of this feature for environmental responsibility.


Resistance to Chemicals

Stainless steel is resistant to many chemicals. Applications may benefit from this quality, where the components may come into contact with corrosive substances.


inqurie

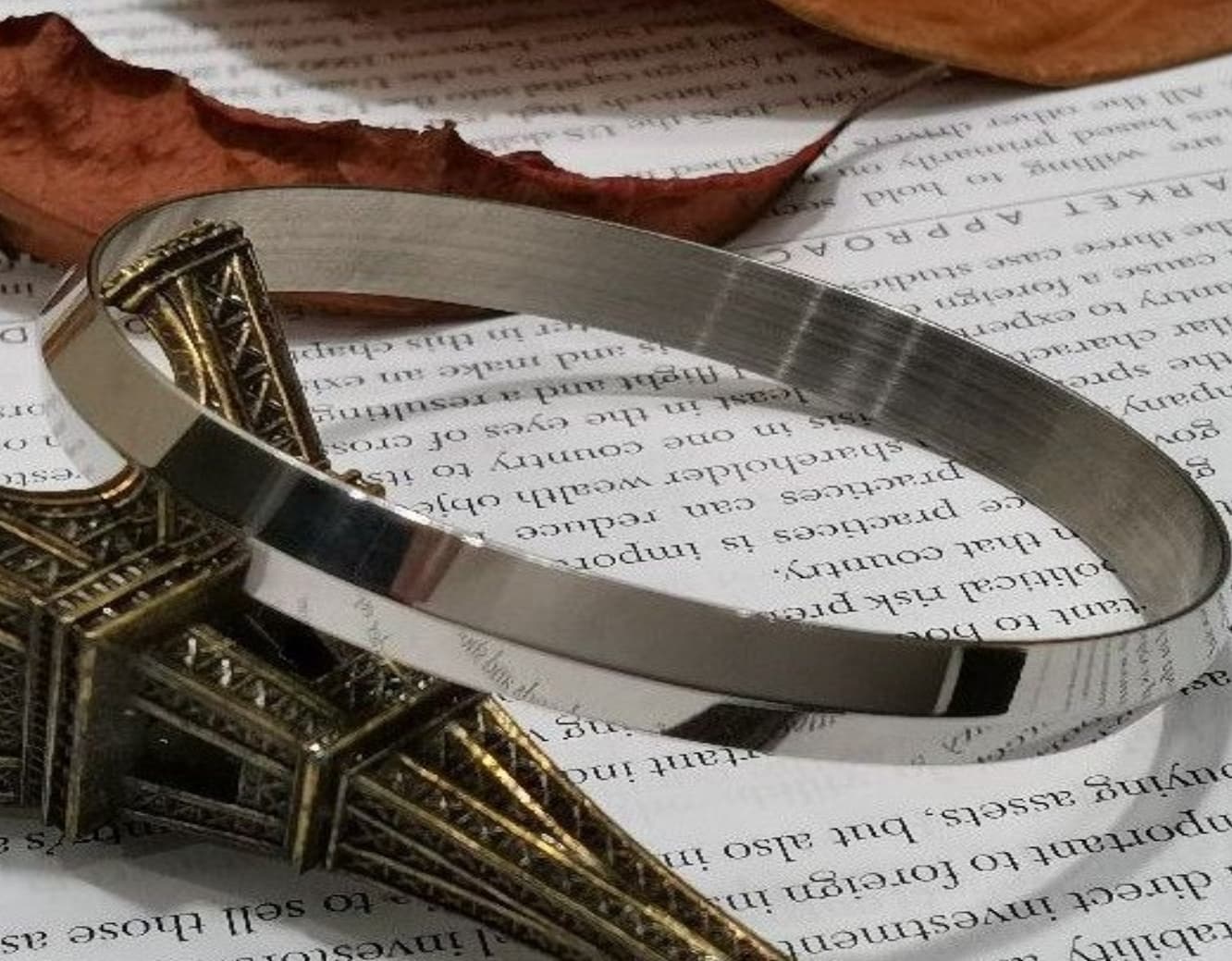

Stainless Steel Deep Drawing Component Features

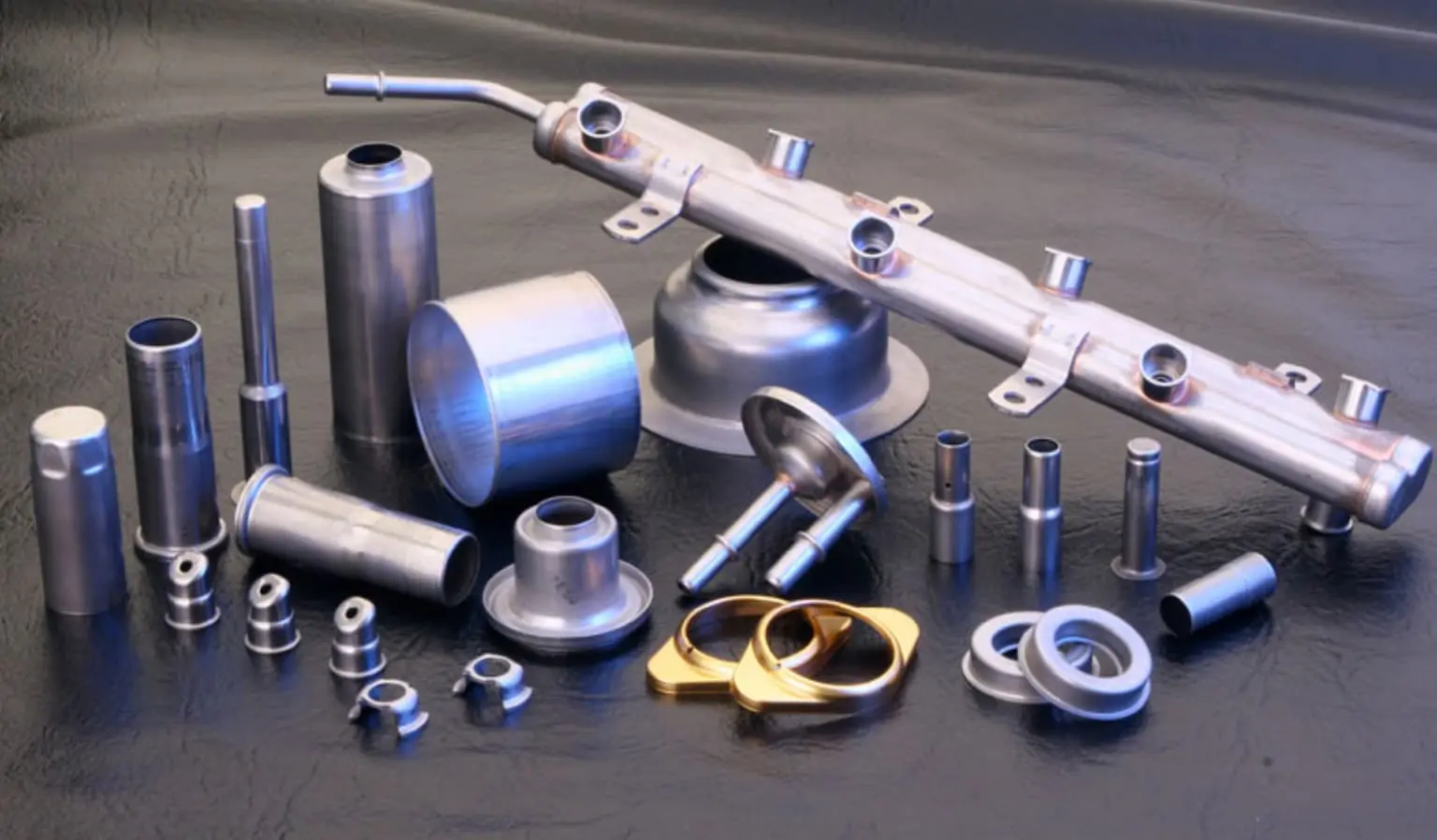

Stainless Steel Applications

Stainless Steel Applications

Household and Cooking

Stainless steel is often the most deep drawn metal used for kitchen sinks, cookware, and cutlery because of its corrosion resistance, heat resistance, ductility, and smoothness.


Medical and Pharmaceutical

Stainless steel is biocompatible and corrosion-resistant. This is highly useful in the deep drawing application of surgical instruments, prosthetic implants, and pharmaceutical equipment like mixing tanks, filters, and sterile tubing.


Automotive and Transportation

Stainless steel can often be drawn into exhaust systems, fuel tanks, and body panels due to its heat resistance, formability, and aesthetics.


Architecture and Construction

With its weather resistance and aesthetics, stainless steel becomes very drawable for building cladding. It requires stainless steel sheets and panels for facades and roofs—same with hardware, fittings, and ducting.


Electronics and Electrical Components

Deep drawing stainless steel is common when producing precision components for electronics. Its corrosion resistance and dimensional accuracy once again become helpful in creating casings, connectors, and enclosures.


Military and Defense

Stainless steel components are functional in military and defense applications for their strength and corrosion resistance.


Oil and Gas Industry

Structural steel fabrication produces oil and gas components, including valves, fittings, and containers.


Jewelry

Deep drawing stainless steel is very popular in the jewelry industry for creating durable and corrosion-resistant pieces.


Renewable Energy

Fabricated steel comes in great use for renewable energy systems, like solar water heaters and wind turbine components.



inqurie

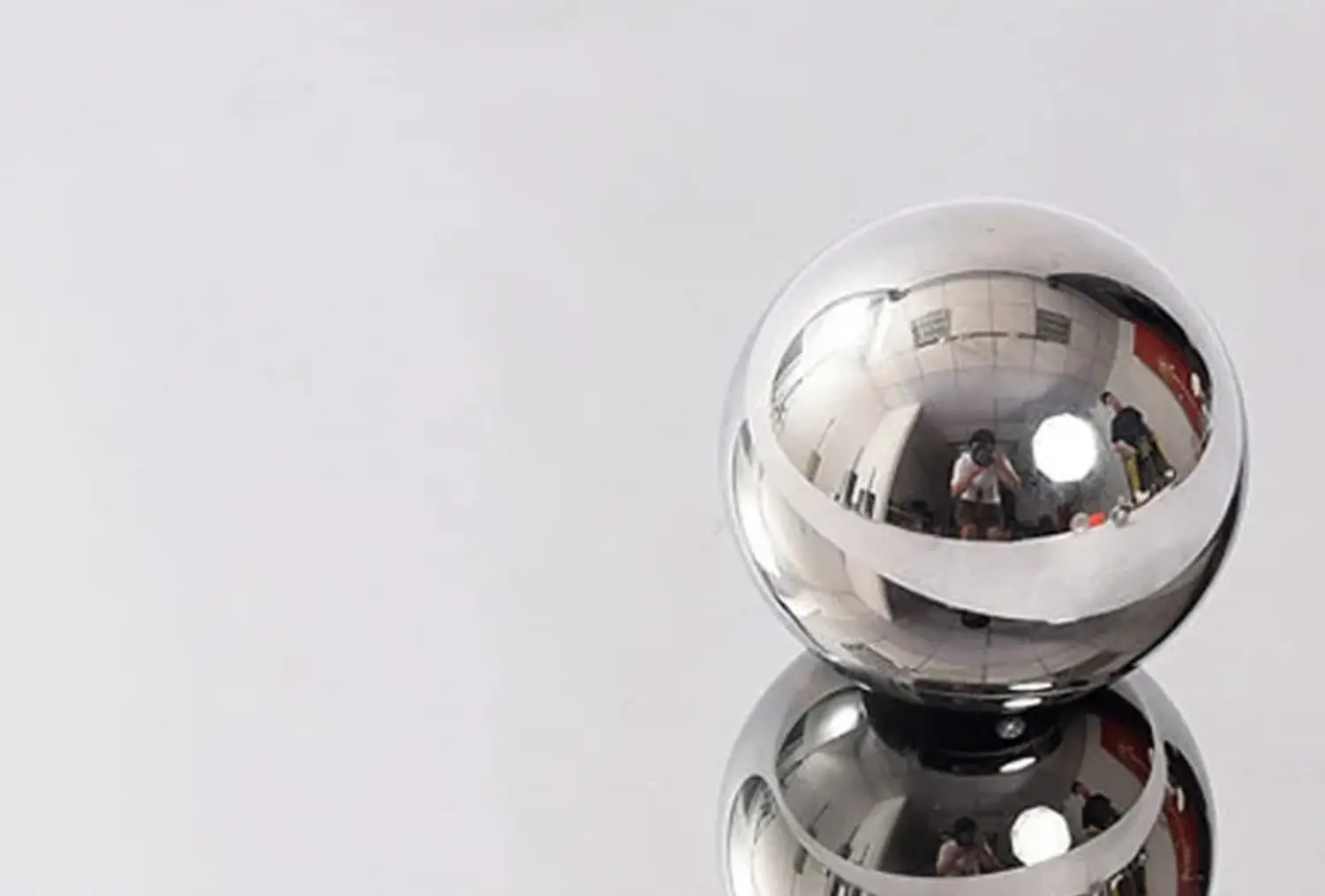

Why Choose JCL's Deep Drawing Parts

Why Choose JCL's Deep Drawing Parts

Experienced Engineering Team

With a team of skilled engineers, JCL brings expertise to every stage of the deep drawing process.


Compliance and Regulation Adherence

JCL adheres to industry regulations and legal requirements. Our stainless steel drawing components always meet the necessary compliance standards.


Scalability and Capacity

JCL has steadily expanded both team members and manufacturing capabilities. Our scalable bending operation ensures we can handle projects of varying sizes.


Timely Delivery

We value your time. JCL efficiently produces and projects to complete your components on time without compromising stainless steel deep drawing quality.


Cost-Effective Solutions

JCL balances quality with cost-effectiveness. We provide competitive pricing for high-quality stainless steel components.


Quality Standards

JCL values integrity and quality. Our stainless steel components always meet standards.


inqurie

Some Challenges You May Face & Their Solutions

Challenge

You may not be familiar with stainless steel grades, their properties, and their deep drawing performance.

Solution

JCL assists you with educational resources to help you understand the ins and outs.

Challenge

You may not be aware of design accuracy factors like springback, thickness variation, and formability limitations.

Solution

JCL offers expert design assistance to ensure component design compatibility.

Challenge

You may find it hard to balance stainless steel's costliness and durability.

Solution

JCL is transparent about the pricing and works with you to find the most cost-effective solution.

Challenge

You may find it complicated to choose a qualified and experienced manufacturer from the competitive roster.

Solution

JCL has a team of experienced engineers with legal certifications and customer reviews to ensure your project is in capable hands.

Factors to Consider When Using Stainless Steel Parts

  • Material Selection: Choose the grade with the suitable properties for the application and environment.



  • Component Design: Before designing your component, consider its level of complication and compliance with material and function. Also, figure out the number and type of features you want.



  • Tolerances and Dimensions: Clearly define the tolerances and dimensions for your deep drawn component.



  • Surface Finish Requirements: Specify your desired surface finish.



  • Material Thickness: Choose the appropriate thickness based on structural, strength, and weight requirements.



  • Batch Size: Consider the required production volume when placing an order.



  • Cost Evaluation: Evaluate the cost of your selections and production volume.



  • Tooling and Die Design: Make sure you choose the appropriate tooling and die design for your component because it will also affect your cost.



  • Lead Time: Consider the project timeline and any specific deadlines.


inqurie

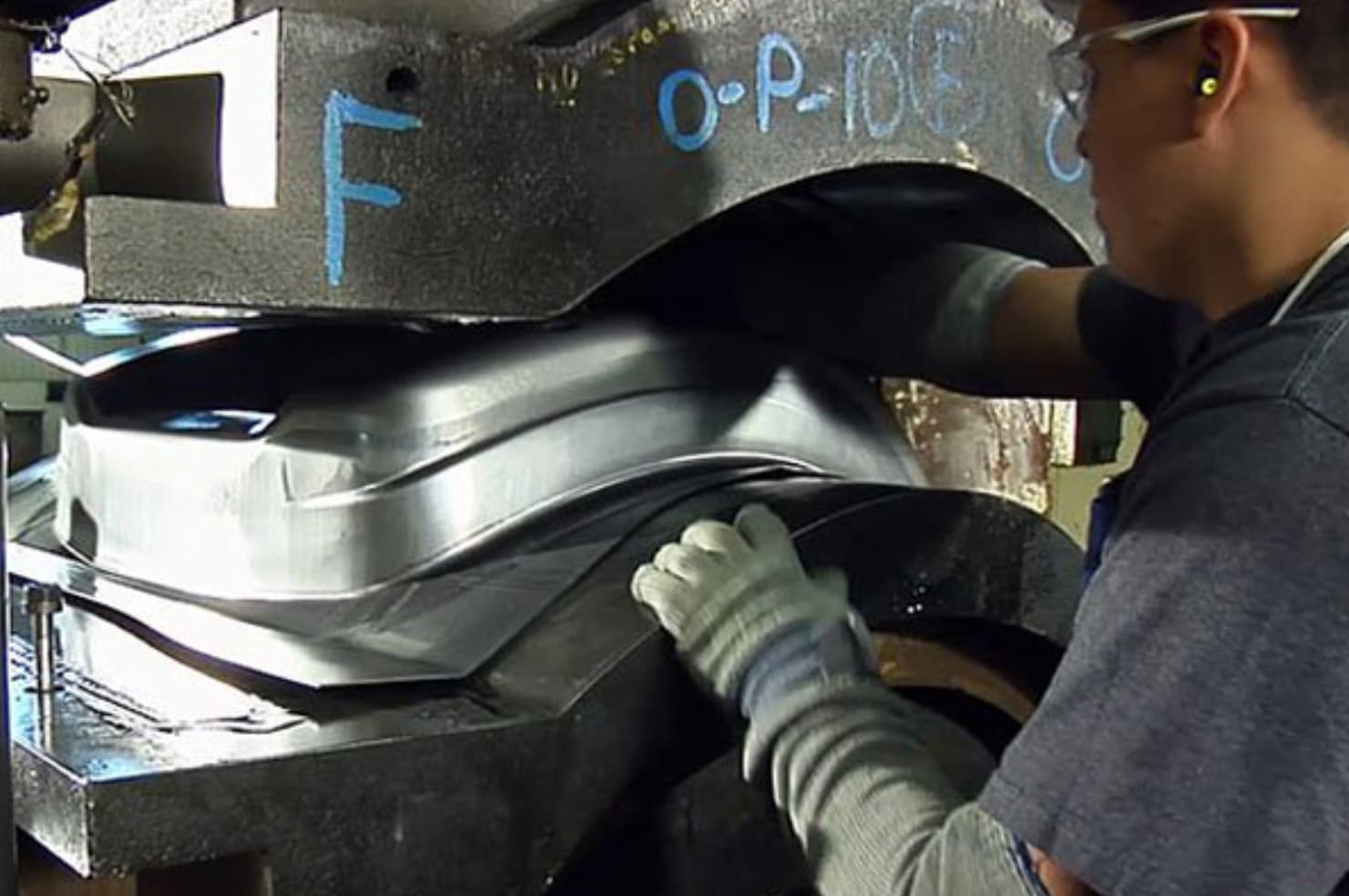

Factors to Consider When Using Stainless Steel Parts


Materials & Manufacturing

Stainless Steel Material Selection:

  • We offer high-quality stainless steel grades as per your needs and demands.

  • We procure deep drawing materials intending to meet industry standards in every aspect.


Stainless Steel Deep Drawing Manufacturing Process:

  • Our skilled engineers deploy cutting-edge sheet metal bending techniques to get unique transformations.

    We employ

  • Advanced tooling and dies to get component geometries optimized for minimal material alloy steel waste.

  • Complete control over forming parameters like pressure, lubrication, and draw speed.

  • In-process inspections at every stage to achieve accurate dimension and surface finish.

Stainless Steel Grades for Different Applications

  • Stainless steel is a popular choice for a wide range of applications due to its excellent corrosion resistance, strength, and durability. However, with so many different grades available, choosing the right one for your specific needs can be challenging. Here's a table summarizing some common stainless steel grades and their ideal applications:

    Grade

    Application

    Grade

    Application

    304 (18/8)

    General-purpose,

    food equipment, medical instruments

    410

    Cutlery, bolts, screws

    316 (18/10)

    Marine applications, chemical processing, architectural panels

    17-4PH

    Springs, shafts, valves

    304L (18/8L)

    Low-carbon version of 304

    301

    Food processing equipment, cookware

    316L (18/10L)

    Low-carbon version of 316

    310S

    High-temperature applications, furnaces

    430

    Decorative trim, automotive exhaust systems




inqurie

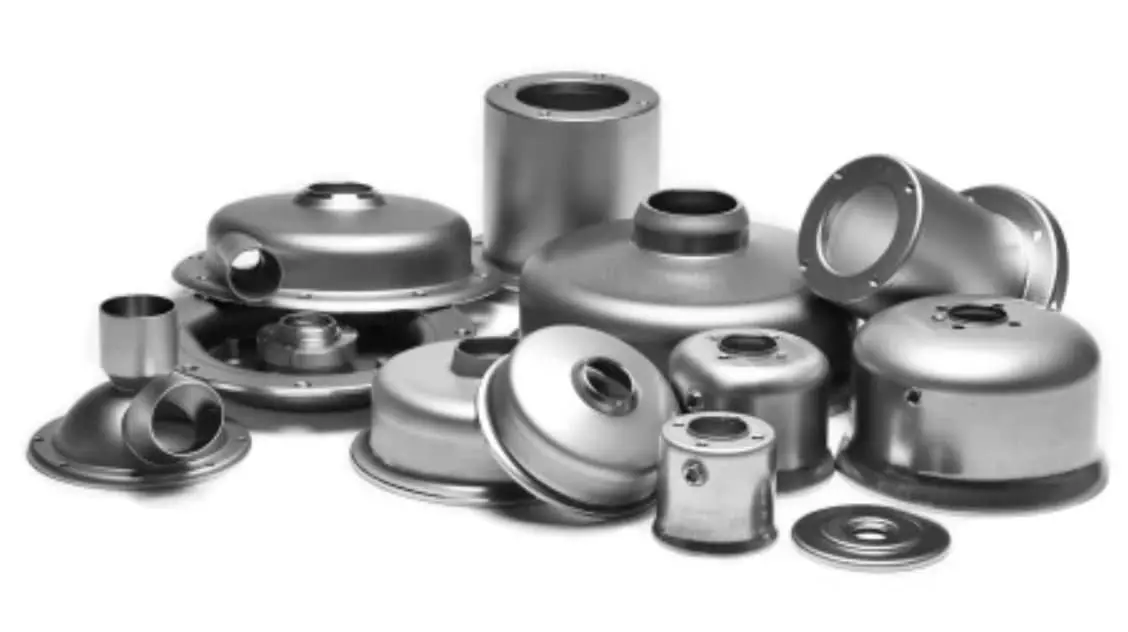

Customizable Options

Customizable Options

  • Grades: You may choose from various deep drawing steel grades to match your specific requirements.



  • Thicknesses: You may let us know if you have any desired sheet thickness for your component's load and aesthetics.



  • Surface Finish: We provide different finishes for your component. E.g., a natural mill, a brushed or polished, or a textured finish.



  • Shape and Size: JCL can customize components to any shape and size.



  • Wall Thickness: You can have different wall thicknesses per your needed strength.



  • Features: JCL lets you design holes, slots, bends, ribs, or other features into your component.



  • Colors: We also color coat or electroplate the components for visuals.



  • Secondary Processes: If you need welding, laser cutting, and assembly, we are here for you.



  • Different Tolerance Levels: We calibrate the tolerance levels for critical dimensions, too.



  • Embossing and Engraving: If you want, we can also emboss or engrave on surfaces.



  • Different Batch Sizes: You can choose different batch sizes as you need.



  • Packaging Options: We also let you choose packaging options based on your supply chain or assembly preferences.


inqurie


Quality Assurance

  • JCL hand-picks certified raw materials that meet industry standards.



  • We give you optimum tensile strength, hardness, corrosion resistance, and other stainless steel properties.



  • We consistently monitor and adjust pressure, lubrication, and draw speed during the deep drawing stainless steel process.



  • We examine and maintain the mold and stainless steel deep drawing die at every step to prevent wear and tear.



  • And, of course, we are skilled and officially trained to carry out these steps.



  • We implement thorough quality control measures throughout the deep drawing.



  • Our components are always assessed for thickness, dimensional accuracy, surface finish, and cracks or imperfections.



  • We observe relevant industry certifications like ISO 9001.


inqurie

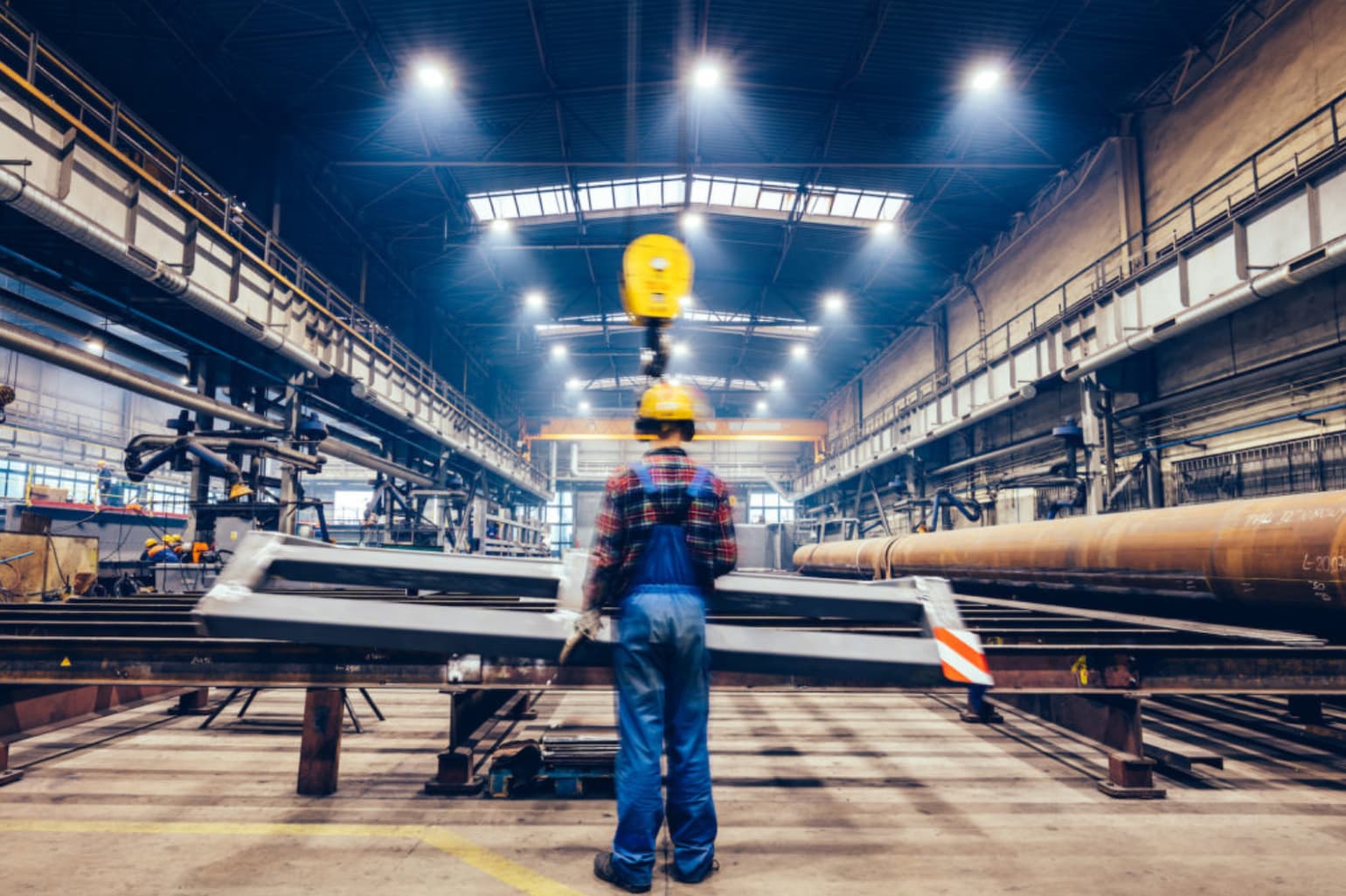

Quality Assurance Of Stainless Steel Deep Draw Parts


How It Works-BUSINESS AND CUSTOMER PROCESS FLOW

  • 01
    1

    Contact our website, email, or phone if interested or to inquire about anything relevant.

  • 02
    2

    We will consult with you to understand your needs.

  • 03
    3

    We work hand-in-hand with you to analyze your plan with initial sketches, 3D modeling, etc.

  • 04
    4

    After analysis, our experts recommend a suitable stainless steel grade and deep drawing process.

  • 05
    5

    We give you a quotation with your chosen materials, processes, and customization options. Once confirmed, we get to work!

  • 06
    6

    Our skilled engineers design and manufacture custom tooling for your component.

  • 07
    7

    We produce your component and implement thorough quality control and testing.

  • 08
    8

    Once complete, we pack it up and deliver your components on time. If needed, we even assist with installation.

  • 09
    9

    We're always a call away to answer your questions and offer support even after delivery. Your satisfaction is our priority!

FAQ


  • Can stainless steel be deep drawn?

    Yes, Stainless steel can be deep drawn, but it is usually done so at room temperature in a cold-working process. For added strength, it is heat-treated afterward. 400 and 300 series make the best deep drawn stainless steel components.




  • What is the best steel for deep drawing?

    The 300 or austenitic stainless steels are best for deep drawing. Usually, the 304 stainless steel deep drawing quality is optimum for its excellent amount of nickel.




  • Why is deep drawing used?

    Deep drawing sheet metal can form the metal into various parts and structures. These structures are highly applicable in many industries, e.g., electrical, automotive, and aerospace.




  • What is the quality of deep drawing?

    Deep drawing has Increased Quality. Deep drawing brings out the best of metal, giving it a well-distributed geometry and smoothness. The deep drawn process also gives heightened accuracy without any secondary finishes.


inqurie


Contact Us
GET IN TOUCH WITH JCL

We are excited to collaborate with you!

If you have any questions about our products or require custom machining services, please don’t hesitate to reach out to us. We are here to assist you and provide the solutions you need.


Building A, No. 2 Shiquanling Road, Zhenjiang Sub-district, HZZK Hi-tech Industrial Development Zone, Huizhou
