Sheet Metal Assemblies

Sheet Metal Assemblies

As a leading stamping supplier, JCL also delivers excellence in stamped part assembly. Our expertise lies in seamless welding, joining and fastening, we are able to integrate separated stamped components to create high-quality assemblies that meet our customer requirements. Our team provides assembly fabrication, in-line assembly operations and various functional testing to ensure a meticulous assembly process. JCL keeps planning our labor in advance and ensures stable output from our assembly line.



Sheet Metal Assemblies


Services

Advantages of JCL Part Assemblies

Contact Us

Expertise in Stamping Technology

1

Comprehensive Service Range

2

Advanced Equipment and Technology

3

Experience Across Industries

4

Common Assembly Processes in JCL

  • Welding is a common process for joining stamped parts together. It creates strong and durable connections, especially for assemblies with complex structures.

  • Fastening can be done through manual assembly or automated systems. Fasteners such as screws, nuts, bolts, or rivets are used to securely join stamped parts.

  • Riveting is an alternative to welding for joining stamped parts. It involves using rivets to create a strong and permanent connection.

  • In assemblies involving electrical components, integration processes for connectors, terminals, or wiring are essential for proper functionality.

  • Adhesive bonding may be employed to join stamped parts, providing an alternative to mechanical fastening or welding.


inqurie


Equipments For High Integrated Assemblies

JCL equipped with machines for stamped part assemblies, including cutting, joining, bending and welding. We are able to collect the stamped parts with surface finishes, making sure the precision and tolerances are qualified. Correlate together with various joining methods, including fasteners (screws, nuts, bolts, rivets) to securely join stamped metal parts together or hinges and other components that enable motion for applications like doors, lids, or moving mechanisms. We also acquire laser, flux, ultrasonic and spot welding equipment for high strength industrial requirements like automotive or flexible joints for electronics. Finally, glue dispensing is also a critical technique for us to apply on part with complex profile and sealing performance.


inqurie

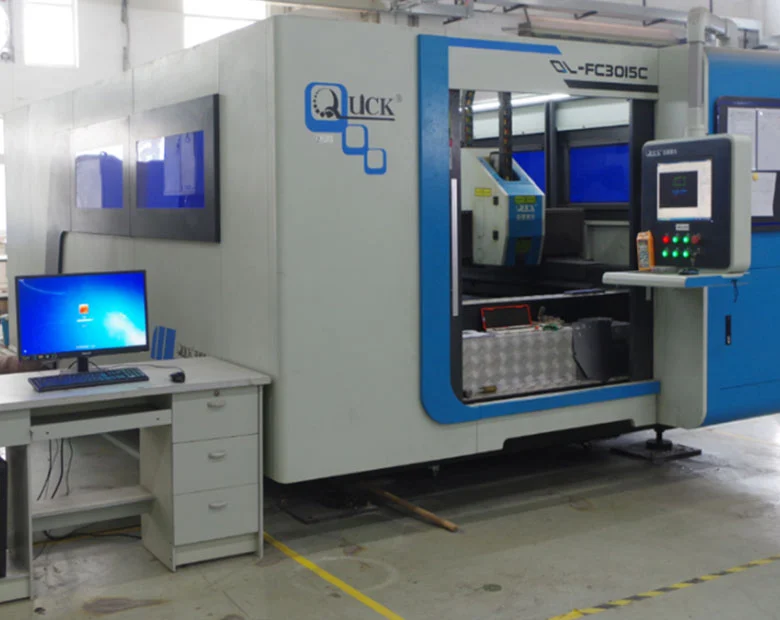

3000w CNC Laser Cutting Machine
3000w CNC Laser Cutting Machine

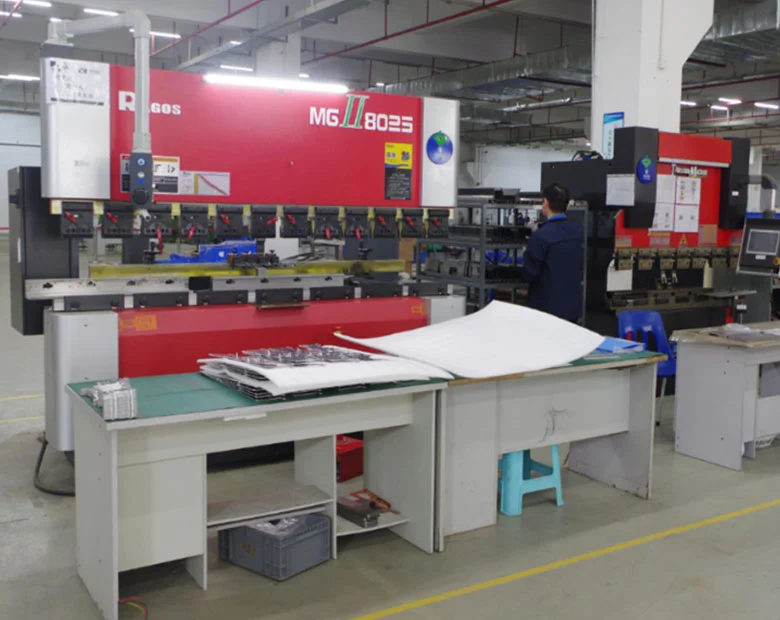

High Tonnage Press Stroke
High Tonnage Press Stroke

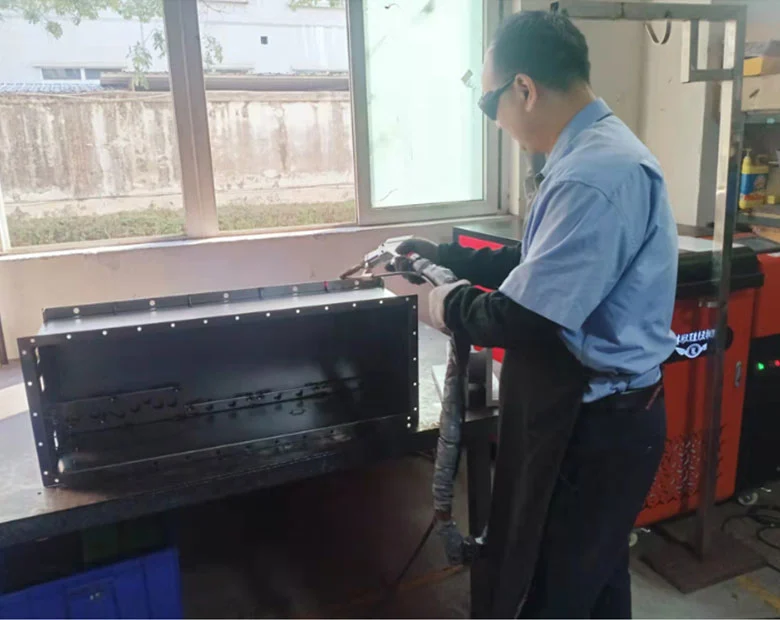

Laser Welding Machine
Laser Welding Machine

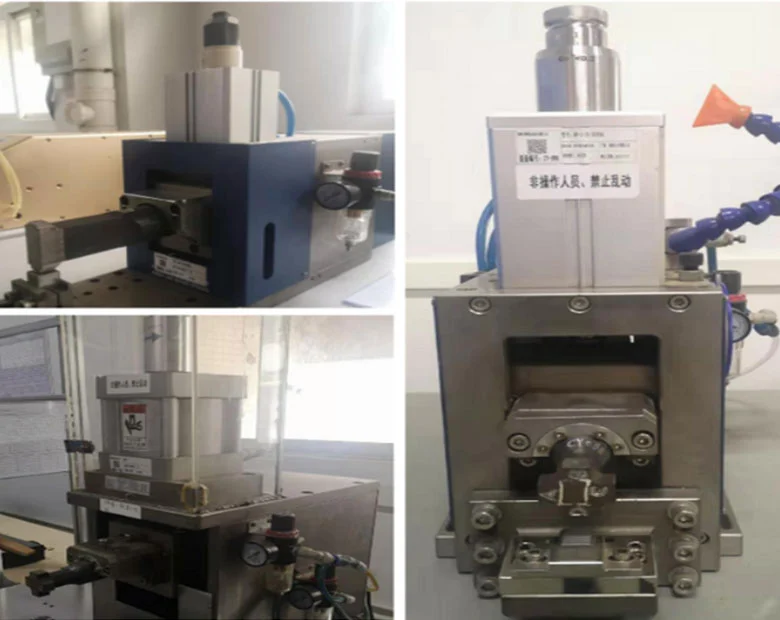

Ultrasonic Welding Machine
Ultrasonic Welding Machine

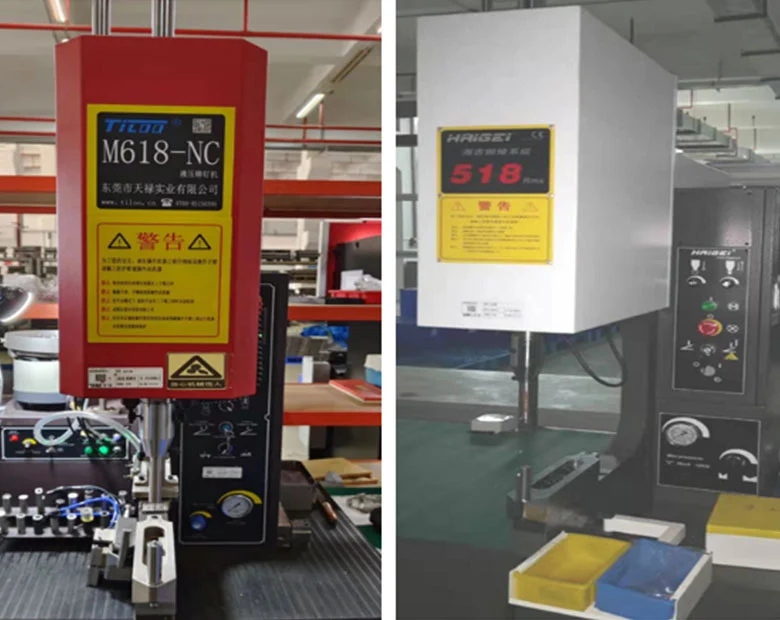

Spot Weld and Riveting Machine
Spot Weld and Riveting Machine

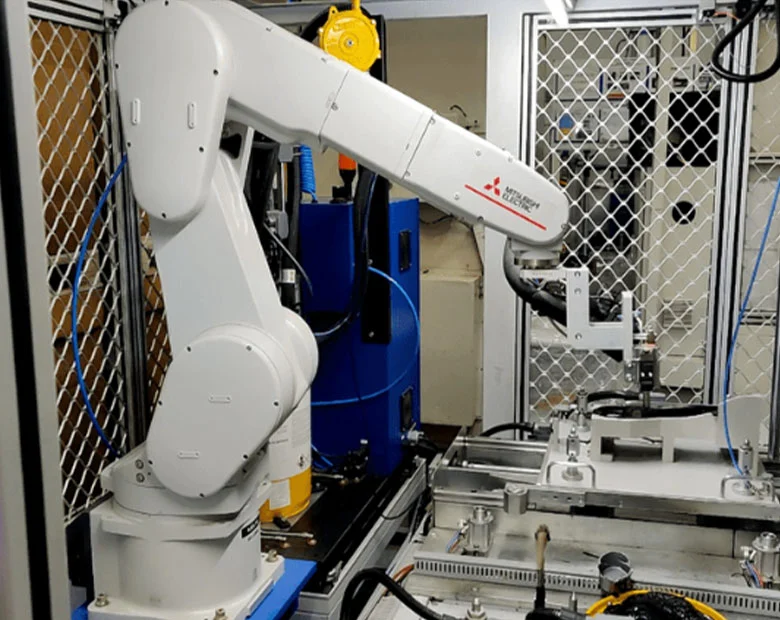

Glue Dispensing Robot Arm
Glue Dispensing Robot Arm

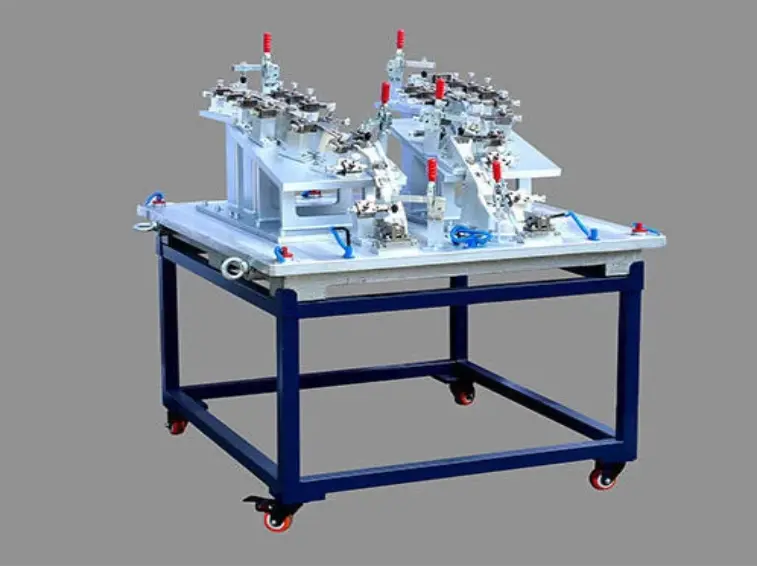

Checking Gauge, Jig and Fixture

Checking Gauge, Jig and Fixture

In addition to common two-dimensional and three-dimensional measurement methods, we also have specialized capabilities in the design of checking gauge, jig and fixtures. Checking gauge and fixtures involve quickly checking various dimensions on a product's reference datum through geometry dimension and tolerances (GD&T). All you need to do is place the product on the fixture, secure it, and then use go/no go gauges to rapidly determine if the assembled parts are compliant in a short amount of time. Checking fixtures are a widely used method in the automotive industry, significantly improving the efficiency of inspections while reducing costs. By applying this technology, we can achieve the most efficient assembly inspections.


inqurie

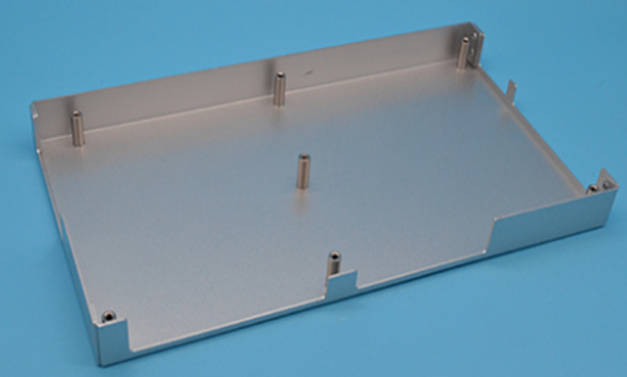

Case Stories We Have - Case 1

The simplest tasks are often the most challenging. This component has no welding parts, and the shell is formed in one piece without seams. We ensure a verticality of plus or minus 0.02 millimeters. After completing the stamping, we assemble the screws, achieving a positional accuracy of 0.03 millimeters as required by the customer. These high-precision operations result in a seamless integration of the shell onto the main equipment, creating a unified effect. Through our processing capabilities, we demonstrate our commitment to precision and the flawless execution of perfection to our customers.


inqurie


Sheet Metal Assemblies Cases

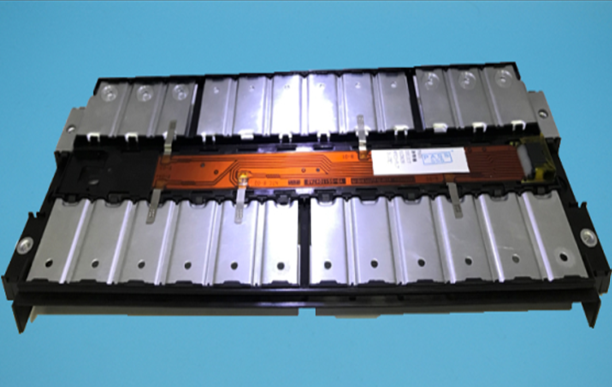

Case Stories We Have - Case 2

We have produced numerous components for new energy vehicles, and this is a typical representative case. This product has many welding points, numerous fasteners, and the customer demands high precision, requiring meticulous assembly. We accepted this challenge and, first, conducted a detailed analysis of the stamped parts, optimizing the mold to achieve the highest level of integrated molding, thereby reducing subsequent processes. The high precision of the components makes the assembly work half successful. We also designed welding and assembly fixtures, significantly improving manual efficiency, enabling a monthly production exceeding 10,000 units and fully meeting the customer's delivery requirements.


inqurie


Sheet Metal Fabrication And Assembly

Explore JCL Stamped Part Assemblies Service

Discover how JCL's leading facility and hands-on team keeps attention to detail and commitment to exceptional stamped part assemblies. Whether you require customized solutions or standard assemblies, we have the capabilities to reach your expectations. Partner with us for stamped part assemblies that elevate your projects to new levels.


inqurie
